A carport can fit your vehicle on paper and still make the driveway awkward to use. A post beside the driver's door, a restricted turning path or a poorly placed support line can create problems every day. For an Australian home, choosing a cantilever carport kit starts with the parking layout—not just the overall roof dimensions.

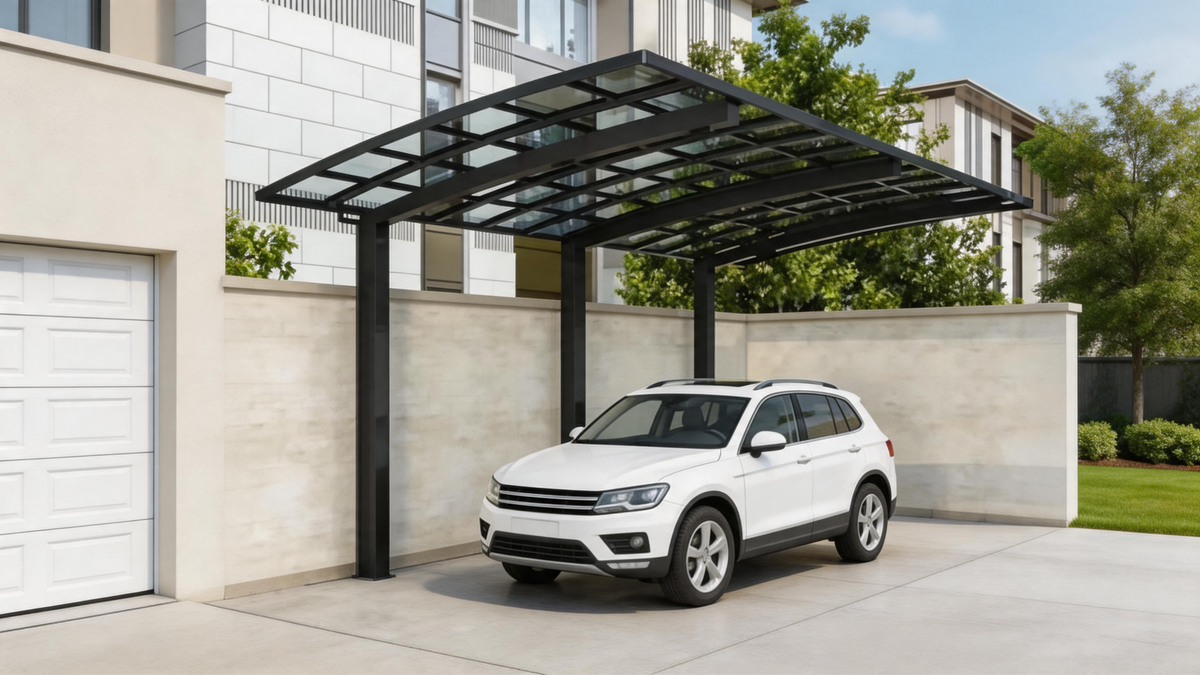

A cantilever carport is a vehicle shelter with a roof that projects beyond its supporting posts or frame, leaving a designated edge or access area without posts beneath the overhang. Also called a cantilevered carport, it can keep an important part of the parking area open. The position of that open area depends on the model.
If you are comparing cantilever carport kits in Australia, consider the support layout, usable clearance, roof material and requirements for your particular site. Local council rules, coastal exposure, wind conditions and drainage can all affect the right choice.
Choosing a Cantilever Carport in Australia: The Short Answer
- Choose the support layout first: identify which side, entrance or outer parking edge needs to remain open.
- Measure clear space: compare usable bay width, roof clearance and door-swing areas—not only the external dimensions.
- Select the roof for your priorities: daylight, full shade and insulation are different requirements.
- Check local approvals: ask your council or relevant building approval authority which rules apply to the property.
- Verify engineering suitability: the exact kit, foundations and anchoring must suit the site's requirements.
- Confirm Australian delivery: check freight availability, access, unloading arrangements and any additional costs before ordering.
How Does a Cantilevered Carport Work?
A cantilevered carport transfers roof loads through its projecting beams and connections into its support posts and foundations. Rather than placing a post beneath every roof corner, the structure leaves a planned part of the covered area open.
For a residential driveway, that can help keep a door-opening zone clear, improve access beside the vehicle or remove a column from a particular approach path.
It does not mean the carport has no posts or can be fixed to any existing concrete surface. The support line still needs appropriate placement, foundations and an anchoring arrangement suitable for the design and site.
Single-Sided vs Double Cantilever Carport Kits
Start by asking where the posts can sit without disrupting parking. Vehicle count matters, but support placement is often the deciding factor.
Single-Sided and L-Type Cantilever Carports
A single-sided carport supports the roof from one side of the parking bay. This can suit a one-car driveway where the opposite edge needs to remain open for doors, passengers or a walking route.
Compare L-type single cantilever carport kits when side access is your main priority. Measure the supported side too: passengers and vehicle doors may still need clearance near the posts.
Y-Type Double Cantilever Carports
A Y-type double cantilever carport has a centre support row with the canopy extending to both sides. It provides two covered bays with open outer edges.
The centre row is the important trade-off. It must fit between the vehicles without interfering with inner-side doors, walking routes or normal parking positions. Open outer edges do not guarantee unrestricted clearance around both cars.
Explore Y-type double cantilever carport kits when you need two covered bays and can accommodate the central supports.
Cantilever Carport vs Standard Post-Supported Carport
Neither structure is automatically better for every Australian property. A conventional carport can provide comfortable access when it is correctly sized, while a cantilever layout can still create obstacles if its support line is poorly positioned.
| Decision factor | Cantilever carport | Standard post-supported carport |
|---|---|---|
| Post placement | Supports concentrated along a side, centre line or another designated area | Supports typically located around the perimeter or corners |
| Open access | A selected edge or approach area can remain clear | Access depends on bay dimensions and perimeter post positions |
| Door clearance | Can improve on the open side; other areas still need checking | Can be comfortable when posts sit outside door-swing zones |
| Foundation planning | Must suit the projecting roof, connections and support loads | Must suit the requirements of its own structural design |
| Australian site suitability | Verify engineering and approvals for the exact kit and location | Verify engineering and approvals for the exact kit and location |
| Main reason to choose | You need a particular access zone to remain open | Perimeter posts fit comfortably within the available space |
Is a Cantilever Carport Suitable for a Narrow Driveway?
A cantilever carport can help a narrow driveway when its posts are positioned away from the areas you use most. It does not increase the driveway's width, remove a boundary wall or override local setback requirements.
Park your car in its normal position and open the doors you regularly use. Mark the door-swing areas, walking route and turning path. Compare these with the proposed post locations before selecting a kit.
Record measurements in millimetres or metres and distinguish overall roof dimensions from clear bay dimensions. For SUVs and utes, include mirrors, roof racks, roof-mounted equipment and the clearance needed to open the tailgate.
In a two-car driveway, check the space between vehicles as carefully as the outside edges. Also consider garage access, bins, bikes and the route from the parking area to the house.
Why Consider an Aluminium Cantilever Carport?
An aluminium cantilever carport offers a clean architectural appearance and avoids the iron-rust problem associated with steel. Powder coating provides a finished surface and helps protect the frame.
However, aluminium is not maintenance-free or immune to corrosion. Salt exposure, damaged coatings, trapped debris and contact with incompatible metals can affect its condition. Follow the manufacturer's care instructions and inspect the frame, fixings and drainage components as recommended.
For coastal Australian properties, ask about finish suitability, fastener materials, cleaning requirements and warranty exclusions. Do not assume that any powder-coated frame is suitable for every marine environment.
Material alone also does not establish structural performance. Beam dimensions, connections, span, foundations and engineering documentation all matter.
Roof Options for Australian Sun, Shade and Daylight
The support layout determines access. The roof system affects light and heat beneath the canopy. Treat these as separate decisions.
Polycarbonate Roof Panels
Translucent polycarbonate can preserve daylight beneath the roof. Light transmission, solar heat gain and UV performance depend on the panel type, tint, thickness and coatings. A UV-blocking claim alone does not establish how cool the covered area will feel.
Opaque Aluminium Roof Systems
An opaque roof prevents direct sunlight from passing through the panel and creates full overhead shade. However, a solid roof is not automatically an insulated roof, and low-angle sun may still enter through the open sides.
Insulated Sandwich Roof Panels
Foam-core sandwich panels slow heat transfer through the roof. They can help reduce heat entering from the roof surface, while acoustic performance depends on construction and installation.
An open-sided carport remains exposed to outdoor air and wind. Roof insulation does not make it equivalent to an enclosed garage or guarantee a particular temperature reduction. Compare insulated aluminium carport kits if insulation is a priority, and check the support layout of the selected model.
For Australian homes, assess the actual path of the sun, nearby buildings and seasonal shade. North-facing exposure and low-angle western afternoon sun may be relevant, but the conditions at your driveway should guide the decision.
Local Conditions: Coastal, High-Wind and Alpine Sites
Australian conditions vary substantially. A suburban driveway, an exposed coastal property and an alpine location should not be treated as the same installation environment.
- Coastal exposure: confirm coating and fastener suitability, maintenance requirements and drainage details.
- Exposed or high-wind sites: request assessment of the exact structure, support arrangement and foundations.
- Cyclone-prone locations: obtain site-specific advice and suitable documentation; a generic wind-rating claim is not enough.
- Alpine or snow-affected locations: confirm the applicable snow requirements for the exact site and configuration.
- Heavy rainfall: check roof drainage capacity and lawful stormwater discharge arrangements.
Do not rely on descriptions such as “heavy duty”, “cyclone proof” or “all-weather” as substitutes for engineering evidence.
Do You Need Council Approval for a Carport in Australia?
Approval requirements vary by state or territory, local planning rules, property conditions and project design. Some carports may qualify for an exemption or a streamlined pathway, while others require planning or building approval.
Check with your local council or relevant building approval authority before ordering. Depending on the jurisdiction, a building surveyor, certifier or another appropriately qualified practitioner may also be involved.
Ask about:
- Planning and building approval requirements
- Boundary setbacks and street-facing placement
- Height, roof area and site coverage limits
- Heritage, bushfire or other property overlays
- Drainage and stormwater requirements
- Applicable structural and engineering documentation
- Strata or owners corporation approval, where relevant
The National Construction Code and relevant Australian Standards may apply to the project. Do not assume that an overseas kit's standard drawings establish compliance for your Australian site.
Foundations and Installation Requirements
An existing driveway slab is not automatically suitable for cantilever carport posts. Slab thickness, reinforcement, ground conditions, anchor positions and edge distances need checking against the approved installation requirements.
Confirm the footing and anchoring details with an appropriately qualified local practitioner where required. Identify underground services before excavation or drilling, and plan access for delivery and lifting equipment.
Prepared kit components can reduce on-site fabrication, but they do not remove the need for safe handling, accurate alignment or suitable foundations. Ask what assembly work is required for the exact model rather than assuming every kit is a weekend DIY project.
What to Check Before Buying a Cantilever Carport Kit in Australia
Before committing to a cantilever carport kit for an Australian property, request a clear specification and supply list.
- Overall dimensions, clear bay dimensions and minimum roof clearance
- Frame, roof and fixing materials
- Included brackets, fasteners and drainage components
- Foundation requirements and whether anchors are supplied
- Available engineering documents and their applicability to the site
- Australian delivery availability, lead times and unloading requirements
- Quote currency, GST treatment and any import-related costs
- Installation scope, replacement parts, care instructions and warranty terms
Make sure the quote explains what is included and what must be arranged locally. A kit-only price should not be mistaken for a completed installed project.
Planning a Carport for EV Parking
A carport can shelter an EV parking bay, but it does not automatically include charging equipment or solar generation.
Plan the charger position around the vehicle's charging port and normal parking position. Keep cables away from walking routes and wheels. Charging equipment must suit its exposure conditions, and electrical work should be handled by an appropriately licensed electrician.
If you want solar panels, confirm that the carport is specifically designed and approved for the proposed system. Do not add solar panel loads to a standard roof without approval.
Australian Homeowner Checklist Before Ordering
- Measure the vehicle, including mirrors and roof accessories.
- Confirm usable bay width and minimum clear height.
- Test doors, tailgate clearance and daily walking routes.
- Mark post locations and check turning space.
- Compare daylight, full shade and insulation priorities.
- Check local planning, building and property restrictions.
- Confirm engineering suitability, foundations and anchoring.
- Plan roof runoff and stormwater discharge.
- Check delivery access and assembly arrangements.
- Confirm currency, inclusions, care requirements and warranty terms.
Which Cantilever Carport Kit Should You Choose?
Choose a single-sided layout when one parking edge needs to remain open. Consider a Y-type double layout when you need two covered bays and can accommodate a centre support row. Select the roof according to daylight and insulation priorities, then verify the requirements for your location.
The right cantilever carport for an Australian home is one that fits your parking routine, suits the site's conditions and can be installed with the necessary approvals and documentation.
Browse ReadyCanopy cantilever carport kits to compare available layouts. Before ordering for Australia, confirm delivery availability, specifications and the documentation needed for your project.
FAQs About Cantilever Carport Kits in Australia
What is a cantilever carport?
A cantilever carport has a roof that projects beyond its supporting posts or frame, leaving a designated edge or access area without posts beneath the overhang. The open area depends on the model.
Do I need council approval for a cantilever carport in Australia?
Approval requirements depend on the state or territory, local rules, property and project design. Check with your council or relevant building approval authority before ordering, even if the kit is marketed for DIY assembly.
Is an aluminium cantilever carport suitable for coastal areas?
It may be suitable if the finish, fixings, design and maintenance requirements match the site's exposure. Confirm coastal suitability and warranty conditions for the exact kit rather than relying on the frame material alone.
Can I install a cantilever carport on my existing driveway?
Only if the slab and anchoring arrangement meet the requirements for the selected design and site. An existing driveway should not be assumed suitable without checking the foundation and installation details.
Can a double cantilever carport cover two cars?
Yes. A Y-type double layout has covered bays on both sides of a centre support row. Check clear bay dimensions, door opening and spacing around the central posts.
Is an insulated roof better for an Australian driveway?
An insulated roof can be useful when reducing heat transfer through the roof is a priority. A translucent roof may be preferable when daylight matters more. Compare actual panel specifications and remember that open sides still admit outdoor air and low-angle sunlight.
Are cantilever carport kits automatically compliant with Australian requirements?
No. Suitability must be confirmed for the exact design, location and installation. Request the documentation needed by the relevant approval authority and an appropriately qualified practitioner.
